X-SENSE SC07 Smoke and Alarm Detector

Apraksts

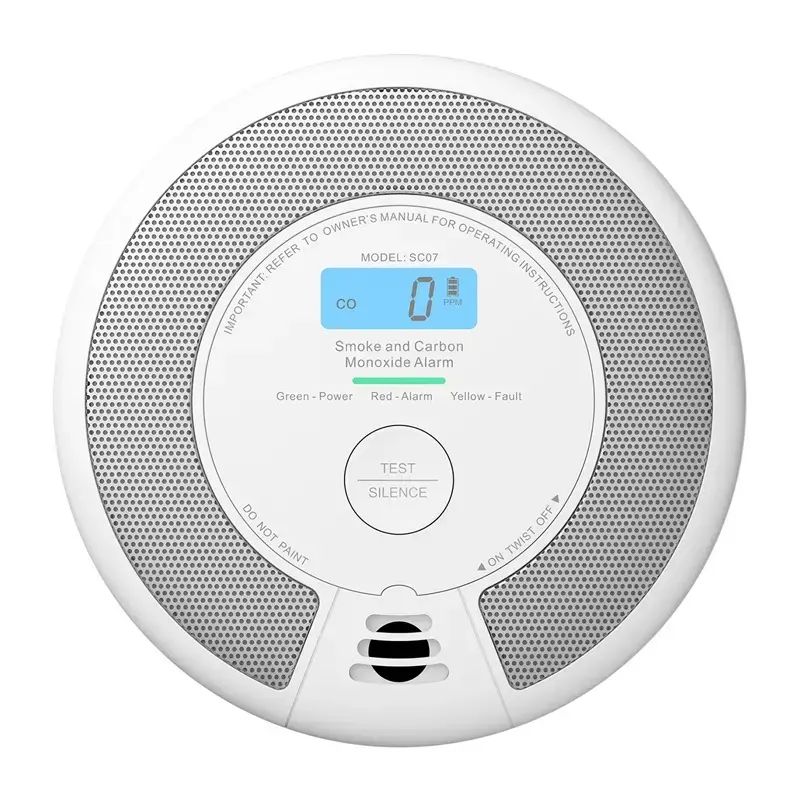

X-SENSE SC07 Smoke and Carbon Monoxide Alarm

The X-SENSE SC07 is an advanced detector designed to help you better ensure safety in your home. The device uses a photoelectric smoke sensor and an electrochemical CO sensor, enabling it to effectively detect both smoldering fires and dangerous levels of carbon monoxide. The built-in LCD display shows the CO level, and a loud alarm of approximately 85 dB allows you to react quickly in an emergency. The SC07 model is equipped with non-replaceable CR123A lithium batteries that provide up to 10 years of operation.

Effective smoke and CO detection

The device uses two detection systems that increase safety in the home. The photoelectric smoke sensor effectively reacts to particles produced during smoldering fires, while the electrochemical sensor monitors the presence of carbon monoxide. The alarm triggers different audible signals for smoke and CO, making it easy to quickly identify the type of hazard. If a dangerous level of carbon monoxide is detected, the LCD display shows its current concentration in ppm.

Easy-to-read display and intuitive operation

The SC07 model is equipped with an LCD screen and a Test/Silence button that allows for a quick check of proper operation or temporary silencing of the alarm. The display automatically activates when the device is in operation and shows messages regarding, among other things, CO levels or battery status. Additional information is provided by a built-in LED.

Up to 10 years of protection

The sensor uses two CR123A lithium batteries that provide up to 10 years of operation—the same as the device’s maximum service life. This means you don’t have to replace the power source. What’s more, the alarm alerts you to low battery levels and the end of the service life by emitting appropriate audible and visual signals, so you can react quickly and maintain continuous protection.

Safe operation and convenient installation

The device is designed for ceiling or wall installation using the included mounting bracket and screws. Its compact design, measuring 146 × 146 × 51 mm, ensures it blends well with interior decor and can be easily installed in bedrooms, living rooms, or hallways.

Included

• Sensor
• Mounting bracket
• Screws x3
• Wall anchors x3
• User manual
• Warranty card



ManufacturerX-SENSEModelSC07Power supply3 V (⎓) CR123A lithium battery ×2Battery lifeUp to 10 yearsMaximum service life10 yearsSensor typeSmoke: photoelectric
CO: electrochemicalSafety standardsSmoke: EN 14604
CO: EN 50291-1CO Alarm Response Time50 ppm: 60–90 minutes
100 ppm: 10–40 minutes
300 ppm: < 3 minutesOperating Temperature4.4°C to 37.8°COperating Humidity10%–85% RH (non-condensing)Alarm volume level≥ 85 dB at 3 m @ 3.2 ± 0.3 kHz (pulsed alarm)Alarm silence time≤ 9 minutesStorage and transportThe device should be stored at temperatures between -10°C and 50°C, with humidity between 5%–95% RH (non-condensing)Dimensions146 x 146 x 51 mmWeight300 g
