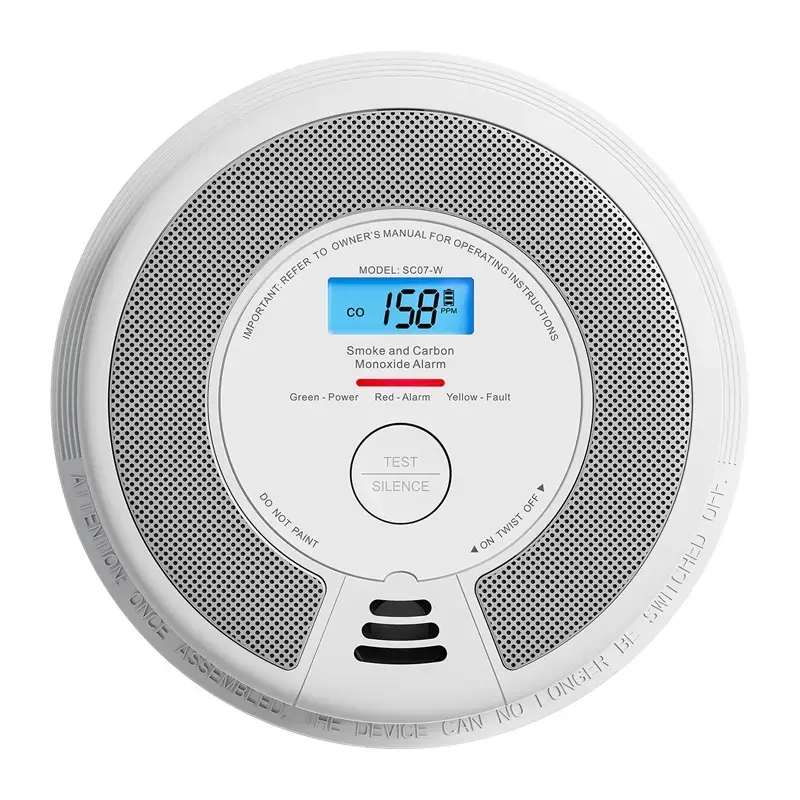

X-SENSE SC07-W Smoke and Alarm Detector

Apraksts

X-SENSE SC07-W Smoke and Carbon Monoxide Detector

Ensure comprehensive home protection with the X-SENSE SC07-W, which combines a photoelectric smoke detector and an electrochemical carbon monoxide sensor in a single device. The alarm alerts you to a hazard by activating an LED indicator and a loud signal of approximately 85 dB. The built-in, non-replaceable lithium battery provides up to 10 years of operation—you don’t have to worry about a power source. Additionally, the device supports wireless communication in the 868.25–869.3 MHz band and can work with other compatible X-Sense Link alarms to create an extensive whole-home warning system.

Two independent sensors for more comprehensive protection

The SC07-W model uses a photoelectric sensor that effectively detects smoke, as well as an electrochemical CO sensor that monitors carbon monoxide levels. The alarm activates in accordance with EN 50291-1 and EN 14604 standards. As a result, the device provides early warning of both a developing fire and dangerous carbon monoxide levels.

Wireless connection of alarms throughout the home

The SC07-W can be connected to up to 24 compatible X-Sense Link alarms. When one of the sensors detects a hazard, all connected devices will sound the alarm simultaneously, increasing the chance of a quick response. A transmission range of up to 500 m in open space allows for effective protection of multiple floors and larger single-family homes or offices.

Test button and silence function

The large Test/Silence button allows you to quickly check the device’s operation or temporarily silence it. The silence function lasts for about 9 minutes, which is particularly useful in the event of false alarms, such as those triggered by smoke while cooking. The built-in LCD display shows CO concentration, and the LED indicator provides information on the detector’s operating status, low battery level, and more.

10 years of reliable operation without battery replacement

The device is equipped with a high-capacity lithium battery that provides up to 10 years of operation—which is its maximum service life. So you can use it with peace of mind, without worrying about its power supply. Additionally, the compact design allows for easy installation of the sensor on the ceiling or wall using the included mounting hardware.

Included

• Smoke and carbon monoxide detector
• Mounting bracket
• Screws x3
• Mounting plugs x3
• User manual



ManufacturerX-SENSEModelSC07-WSensor typeSmoke: photoelectric
CO: electrochemicalPower supplyBuilt-in 3 V lithium battery (non-replaceable)Battery lifeUp to 10 years (tested once a week)Device lifespanApprox. 10 yearsSafety standardsSmoke: EN 14604
CO: EN 50291-1CO sensor sensitivity50 ppm: 60–90 min
100 ppm: 10–40 min
300 ppm: < 3 minAlarm volume≥ 85 dB at a distance of 3 m with a pulsed alarm at 3.2 ± 0.3 kHzOperating temperature4.4°C to 37.8°COperating humidity10%–85% RH (non-condensing)Silence time≤ 9 minOperating frequency869.25–869.3 MHzMaximum RF power10 mWMaximum number of connected devices24Transmission rangeApprox. 500 m in open spaceStorage and transport conditionsThe device should be stored at temperatures between -10°C and 50°C and humidity between 5–95% RH (non-condensing).
