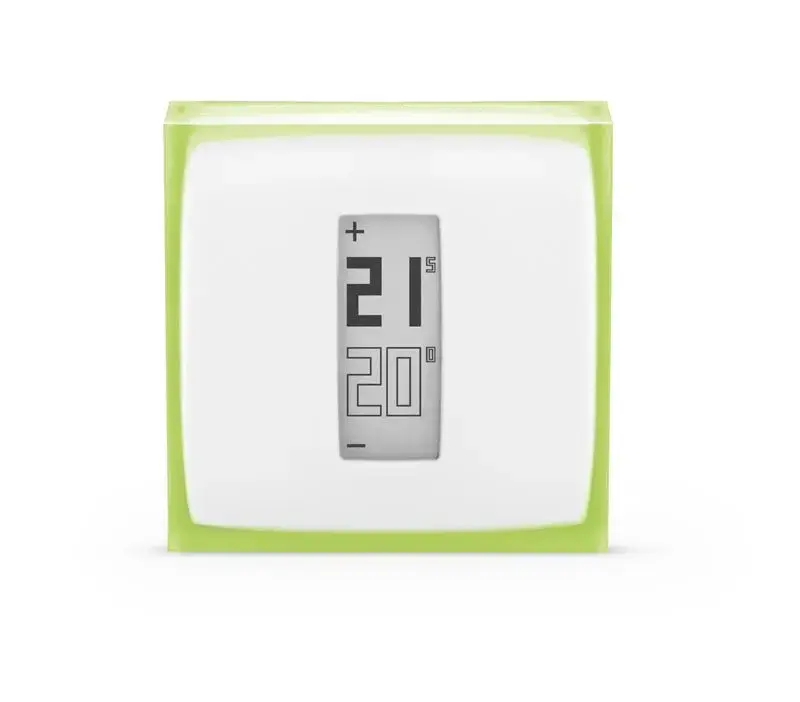

Netatmo Smart Modulating Thermostat

Apraksts

Netatmo Smart Modulating Thermostat

• Control your heating remotely
  Use our Energy app or Legrand's Home + Control App to control your heating from your smartphone and change the temperature at home from your bed or from the other side of the world.
  Schedule your heating for your return from a holiday.


• Right temperature at the right time
  The Thermostat uses your answers to 5 questions to create a schedule that’s based on your habits and lifestyle, so you only use the heating when you need it.


• Auto-Adapt function
  The Netatmo Modulating Thermostat’s Auto-Adapt function uses your home’s insulation and the outdoor temperature to programme when your heat should switch on. So you can have the temperature you want at just the right time.


• Auto-Care function
  Thanks to its Auto-Care function, the Netatmo Thermostat can tell you when its batteries are low, or notify you of a problem with your heating system’s operation.


• Track your consumption
  Display your past energy consumption.
  Your indoor temperature and boiler activity are recorded continuously in the App.


• 4 interchangeable colours
  Customise your Thermostat with one of the four colour adhesive strips provided.


• Mechanics and design
  Energy savings, longer battery life.


• Translucent plexiglass cube
  Opt for a timeless, minimalist design.


• Manual temperature adjustment
  Press on the Thermostat to change the temperature setting.


• Real-time temperature
  Display the temperature setting and the real-time temperature in the room.



Specification

• Product description
  Programmable Modulating Thermostat with smart operation. E-Paper display. Translucent plexiglass cube designed by Starck. Can be customised with 1 of the 4 available colours. Temperature can be directly adjusted on the Thermostat. Designed for indoor use only.


• Product size
  Thermostat & Relay: 83x83x22 mm


• Power
  Thermostat: 3 AAA batteries (2-year lifespan)
  Relay: 220/240 V


• Sensors and measurements
  Temperature (measurements):
  Range: 0°C to 50°C (± 0.1°C)
  Temperature (setpoint):
  Range: 5°C to 30°C (± 0.5°C)
  Units: °C only


• Requirements
  High-speed wireless internet connection needed. Public hotspots not supported


• Connectivity specifications
  Between the Relay and the Internet box: Wi-Fi 802.11 b/g/n (2.4GHz). Open/WEP/WPA/WPA2-personal (TKIP and AES)
  Between the Thermostat and the Relay: radio long-range (868 MHz)


• App compatibility
  iOS 9 minimum required
  Android 4.2 minimum required
  PC & Mac through the Webapp


• Setup and compatibility
  The Netatmo Smart Modulating Thermostat is compatible with OpenTherm boiler
  Replaces wired and wireless thermostats
  Dry contact Thermostat and Relay, potential free (ON/OFF)
  Switching current: max 4 (1) A
  Switching voltage: max 250 VAC
  Maximum switching capacity: 120 VA (4A load @ 30V, 1A load @ 110V/120V or 0,5A load @ 220V/240V)
  Power factor: cos ? > 0.8

Package includes:

• 1 Smart Thermostat
• 1 Relay
• 1 mobile stand and 1 wall-bracket
• 1 wall mounting plate (132 x 132mm)
• 1 boiler adaptor
• 1 mains adaptor
• 4 color adhesives
• 3 AAA batteries
• 4 screws and 4 anchors
