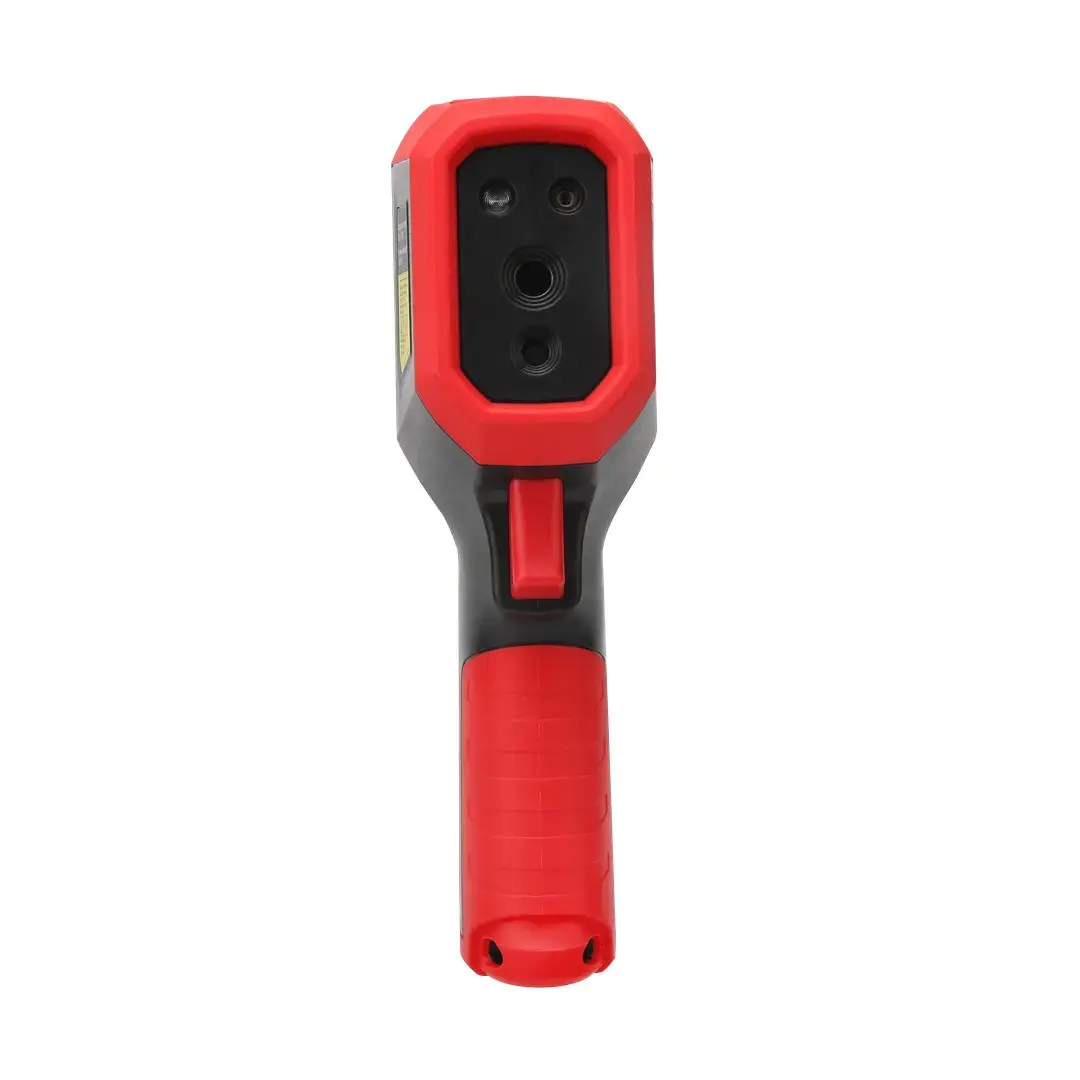

Register to see prices Already a partner? Log inUTi716S
Cost-effective Thermal Camera
UTi716S is equipped with a 12μm infrared detector with 160×120 pixels and 2MP digital camera, combined with Super resolution function and self-developed T-Mix auto-adaptive dual-light fusion algorithm technology for gernerating high-definition IR images with visible details. Its extended temp. measurement range and the built-in LED light & laser pointer meet more application scenarios. 4-button and light-weight design make inspection work easily. Widely used in HVAC, Automotive inspection and electric utility.
Features :
· Specifications
Technical Data | |
Display | 2.4” TFT (320×240) |
IR resolution(Pixels) | 160×120 |
Super resolution(Pixels) | √(320×240) |
Spectral range | 8~14µm |
Pixel size | 12µm |
Frame rate | ≤25Hz |
Thermal sensitivity(NETD) | ≤50mK |
Focus | Focus Free |
Field of view(FOV) | 40°(H) × 30°(V) |
Spatial resolution(IFOV) | 4.62mrad |
Temperature measurement range | -20℃~550℃ |
Accuracy | ±2℃ or ±2% whichever is greater |
Functions | |
Color palettes | White Hot, Black Hot, Red Hot, Ironbow, Lava, Rainbow, Rainbow HC |
Image modes | Thermal, Visual image, Fusion (T-Mix), PIP |
Hi/Lo temperature alarm | LCD animation, LED flashlight, Buzzer |
Hi/Lo temperature tracking | √ |
Digital camera resolution | 2MP |
Laser pointer / LRF | √ / — |
LED lighting | √ |
Analysis software | PC |
General Characteristics | |
Battery | 2600mAh rechargeable Li-ion battery |
Operating time | ≥6 hours |
USB | Type-C |
Storage | 32GB Internal |
Image storage format | JPG |
Protection | IP54 & 2m drop proof |
Certificates | CE, FCC, RoHS |
Languages | EN, FR, DE, ES, IT, SV, PL, CZ |
Weight | 600g |
Dimension | 197mm×72mm×60mm |
