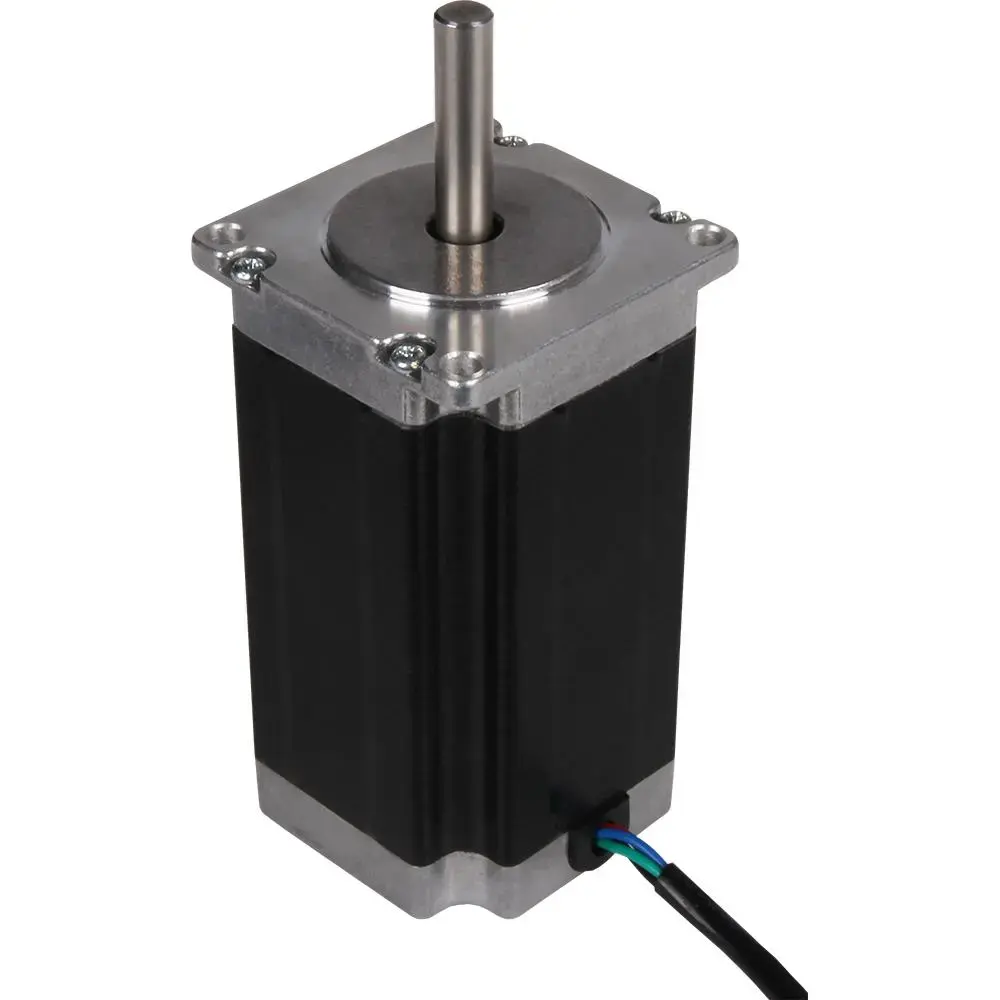

Joy-iT NEMA 23-03 Stepper motor

Kirjeldus

This NEMA-23 stepper motor suits for your project, anyhow with CNC or robotics, if you're looking for high performance. This motor stands out with its high holding torque of 3 Nm .

Specification 57SHD4934-34B
Shaft dimensions Ø 7,5 x 32 mm (single shaft)
Connection 4 -core cable
Steps per revolution 200
Holding torque 3 Nm
Rated voltage 8.4 V
Rated current 3 A
Step angle 1.8°
Amount of phases 2
Phase resistance 2.8 Ω
Phase inductivity 4.2 mH
Isolation resistance Min. 100 MΩ at 500 V DC
Isolation class B (130°)
Rotational inertia 260 g·cm²
Detent torque 0,04 Nm
Operating temperature -10 - 50 °C
