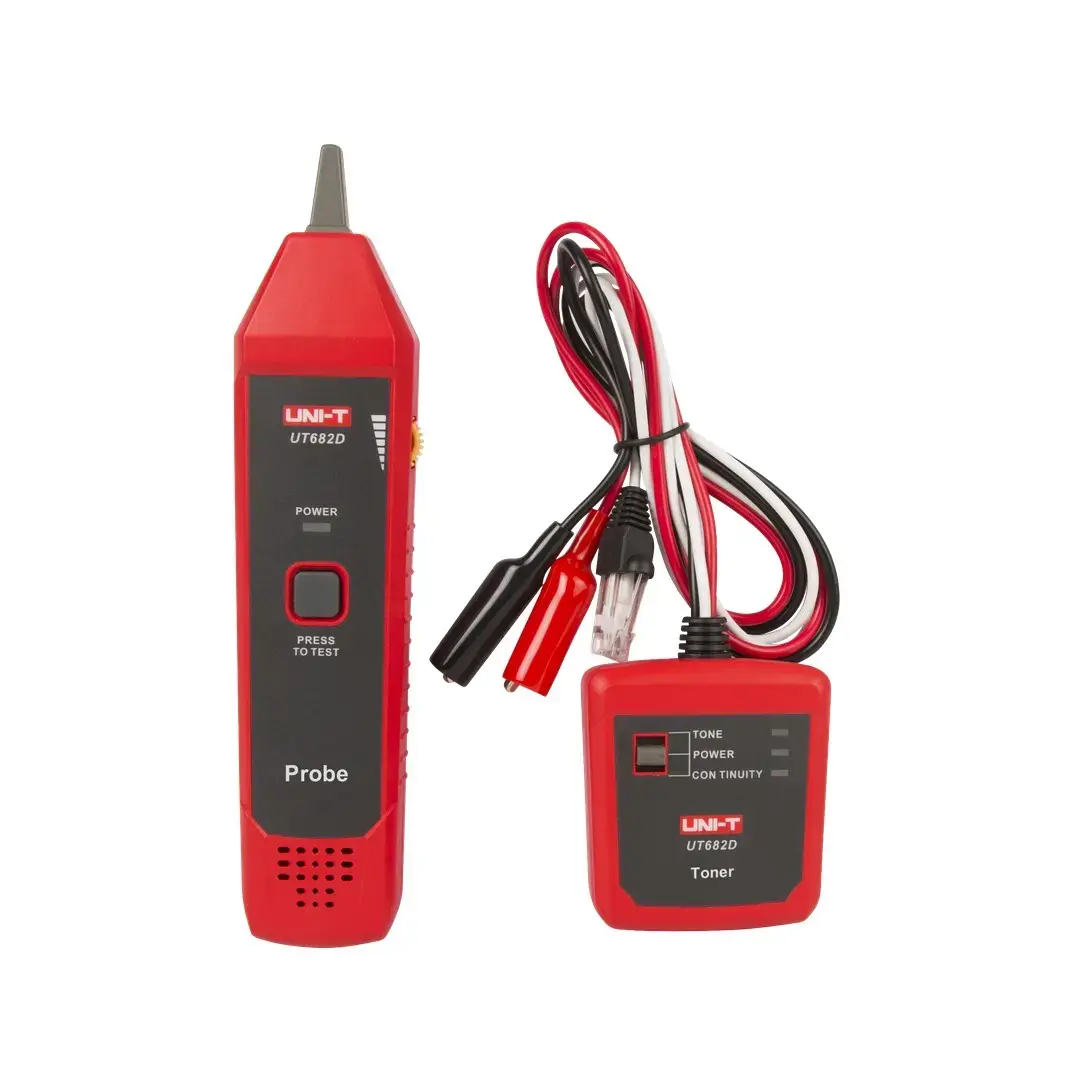

Registreeru ja vaata hindu Juba partner? Logi sisseUT682 wire tracker consists of a transmitter and a receiver, it is able to track ethernet/telephone/power cables without opening their insulation. UT682 can troubleshoot ethernet cables and is a recommended tool for debugging communication cables and audio/video cables.
Features of UT682 Series Wire Tracker/Tone and Probe
Certifications: CE, UKCA
● Telephone/ethernet/power cable tracking
● DC level test, can check voltage level and polarity
● Ethernet cable wiring sequence verification
● Fast open/short circuit test
● Volume adjustment
● Headset connection for noisy environment
● Dual measurement cycle mode
● Low battery indication
Specifications of UT682 Series Wire Tracker/Tone and Probe
Specifications | Range | UT682 | UT682D | |
Wire tracking features | Wire types | LAN cable\telephone line\coaxial cable\electric wire | Telephone line\twisted- | |
Indication light for signal strength | √ | |||
Live switchboard wire tracing | √ | |||
Switchboard wire tracing distance | ≥100m | |||
Telephone lines tracking distance | ≥3000m | ≥3000m | ||
Unshielded cables tracking distance | ≥320m | |||
Shielded cables tracking distance | ≥320m | |||
Open and short circuit test | √ | |||
Polarity indication for | DCV function, range: | √ | √ | |
Telephone lines and LAN cables distinction | Jacks distinction | √ | √ | |
Broken wire tracking | √ | |||
Transmitter output voltage | ≥12V peak-peak | 8V DC with a new battery | ||
Transmitter low battery indication | 6.6V±0.5V | |||
Transmitter power supply | 9V battery | √ | √ | |
Max transmitter working current | 25mA | |||
Headphone jack for receiver | √ | |||
Receiver power supply | 9V battery | √ | √ | |
Max receiver standby current | ~10mA | √ | √ | |
Max receiver operating current | <40mA (AC, RMS) | √ | √ | |
Wire alignment | Line sequence measurement | 9 LEDs (LED1~LED8, LED_G) | √ | |
Line sequence measuring speed | Fast and slow selectable | √ | ||
LAN cable: shielded/unshielded indication | √ | |||
Transmitter input | 52V DC | 60V DC | ||
Operating environment | Operating temperature: 0~40℃; Storage temperature: -10~50℃ | |||
General Characterisitics | ||||
Product color | Red and grey | |||
Product net weight | UT682: Transmitter-125g, receiver-153g; UT682D: Transmitter-150g, Receiver-130g | |||
Product size | UT682: Transmitter-125mm x 48mm x 28mm, receiver-195mm x 48mm x 30mm | |||
Standard accessories | 9V battery x 2, RJ11 cable (UT682), RJ45 cable (UT682), RJ11 cable with alligator clips (UT682) | |||
Standard individual packing | Blister (UT682), carrying bag (UT682), gift box (UT682D), English manual | |||
Standard quantity per carton | UT682: 24pcs; UT682D: 20pcs | |||
Standard carton measurement | UT682: 575mm x 310mm x 430mm; UT682: 425mm x 265mm x 260mm | |||
Standard carton gross weight | UT682: 12.3kg; UT682D: 7.5kg | |||
